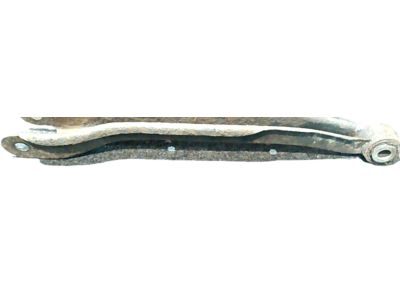

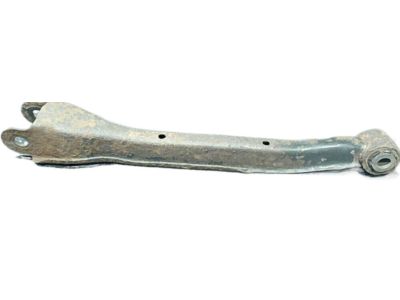

Nissan 55110-60U01 Link Assembly-Lower,Rear Suspension

While the car is off its wheels, lift it carefully and stabilize it, then take out the front tire. First, use the appropriate tool to take off the cotter pin and castle nut from the ball joint of the side rod. Then disconnect the ball joint from the side rod. First, pull the Mac Pherson strut away from the steering knuckle arm, then take off the tension rod and stabilizer bar from the lower arm. Find the connections between the lower control arm and the suspension crossmember. Take out the bolts there and set the control arm aside. Keep the ball joint and steering knuckle attached to the lower control arm. Tighten the control arm nuts or bolts lightly while positioning it over the suspension crossmember. Fully tighten them when you put the vehicle on its wheels. Lubricate the ball joints before installing them, then check you vehicle's wheel alignment.

To fit and also undo the transverse link on a Stanza Wagon 4WD, it will be essential to lift the rear part of the car with jackstands. On this setup, match mark the toe-in adjustment before removing the retaining bolts. Next, take out the link retaining bolts. For installation, you should reverse the procedure of removal and for the final tightening of the transverse link mounting bolts, the wheels should be on the ground, and the vehicle should be unladen. Apart from this, examine the rear drilled alignment.
