How to disconnect and remove the automatic transmission assembly from a 1985 Nissan 300ZX?

Disconnect the negative cable at the battery and place it out of the way to prevent accidental contact with the negative terminal. Raise the vehicle and support it securely on jackstands. Drain the transmission fluid and replace the pan to keep dirt from entering the transmission. Remove the driveshaft, starter, and exhaust front tube. On the left side of the transmission, locate and disconnect the three electrical connectors, moving the attached wires out of the way by cutting the tie straps. Trace the two remaining wires to their connectors near the battery and disconnect them, leaving them attached to the transmission. Disconnect the vacuum line from the vacuum modulator and detach the metal line from its hold-down bracket. Disconnect the two cooling lines at the transmission case, noting the number and location of the sealing rings on the retaining bolts, and follow the lines to disconnect their holding brackets before removing them at the radiator, being prepared to catch any leaking fluid. Unscrew the speedometer cable from the transmission and disconnect the ground wire attached to the body next to the speedometer cable connector. Remove the cotter pin on the shift linkage and disconnect the shifter linkage from the transmission linkage. Place a jack under the engine oil pan, using a piece of wood to avoid damage. Remove all but two of the transmission to engine bolts and take out the dust shield located between the two components. Place a suitable transmission jack under the transmission pan and remove the two bolts retaining the starter support plate to the engine block, then take off the plate. Disconnect the torque converter retaining bolts, using a wrench on the crankshaft bolt to turn it for access to each of the four retaining bolts through the starter opening. Remove the four bolts securing the rear transmission mount crossmember to the body, then take out the two remaining transmission retaining bolts and slide the transmission back and down to remove it from the vehicle. Installation is the reverse of removal, ensuring to fill the transmission with the proper amount of fluid and replace the pan gasket with a new one.

Genuine 1985 Nissan 300ZX Transmission Assembly

Trans Assembly

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Transmission Assemblies found

View related parts

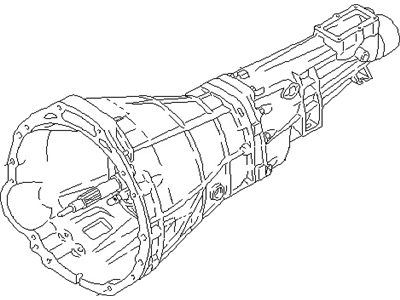

1985 Nissan 300ZX Manual Transmission
Part Number: 32010-19P60
$1720.86 MSRP: $2243.63
You Save: $522.77 (24%)
ADD TO CART
Limited Availability
Product Specifications
- Other Name: Transmission Assy
- Manufacturer Note: FS5W71C
- Replaced by: 32010-19P61
- Lookup Code: 32010
- Item Weight: 157.70 Pounds
- Item Dimensions: 37.8 x 18.7 x 14.9 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 32010-19P60
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SF | 6 Cyl 3.0L | VG30
View related parts

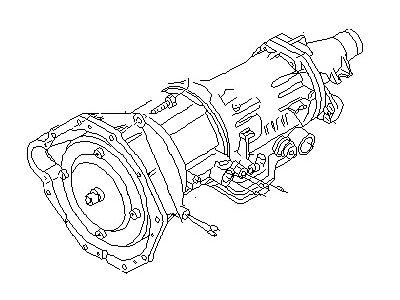

1985 Nissan 300ZX Automatic Transmission
Part Number: 31020-X8062
$3168.30 MSRP: $3835.71
You Save: $667.41 (18%)
ADD TO CART
Limited Availability
Product Specifications
- Other Name: Transmission-Auto
- Manufacturer Note: E4N71B
- Replaced by: 31020-X8101
- Lookup Code: 31020
- Item Weight: 247.20 Pounds
- Item Dimensions: 40.4 x 21.6 x 18.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8062
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL | 6 Cyl 3.0L | VG30T
View related parts
1985 Nissan 300ZX Automatic Transmission
Part Number: 31020-X8020
$3168.30 MSRP: $3835.71
You Save: $667.41 (18%)
ADD TO CART
Limited Availability
Product Specifications
- Other Name: Transmission-Auto
- Manufacturer Note: 4N71B
- Replaced by: 31020-X8100
- Lookup Code: 31020
- Item Weight: 178.50 Pounds
- Item Dimensions: 40.4 x 22.7 x 20.6 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8020
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL | 6 Cyl 3.0L | VG30T
View related parts
1985 Nissan 300ZX Manual Transmission Assembly
Part Number: 32010-03P01
$3218.37 MSRP: $3896.33
You Save: $677.96 (18%)
ADD TO CART
Limited Availability
Product Specifications
- Other Name: Manual Transmission
- Manufacturer Note: FS5R90A(T-5)
- Replaced by: 32010-03P04
- Lookup Code: 32010
- Item Weight: 111.20 Pounds
- Item Dimensions: 40.0 x 17.0 x 15.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 32010-03P01
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SS | 6 Cyl 3.0L | VG30T
View related parts
1985 Nissan 300ZX Manual Transmission
Part Number: 32010-01P11
Product Specifications
- Manufacturer Note: FS5W71C
- Replaced by: 32010-19P61
- Lookup Code: 32010
- Item Weight: 157.70 Pounds
- Item Dimensions: 37.4 x 18.4 x 15.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 32010-01P11
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SF | 6 Cyl 3.0L | VG30
View related parts
1985 Nissan 300ZX Manual Transmission
Part Number: 32010-01P10
Product Specifications
- Manufacturer Note: FS5W71C
- Replaced by: 32010-19P61
- Lookup Code: 32010
- Item Weight: 157.70 Pounds
- Item Dimensions: 36.4 x 18.4 x 15.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 32010-01P10
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SF | 6 Cyl 3.0L | VG30
View related parts
1985 Nissan 300ZX Automatic Transmission
Part Number: 31020-X8084
Product Specifications
- Other Name: Transmission-Auto; Transmission
- Manufacturer Note: E4N71B
- Replaces: 31020-X8075
- Lookup Code: 31020
- Item Weight: 176.80 Pounds
- Item Dimensions: 40.4 x 21.7 x 19.8 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8084
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SF | 6 Cyl 3.0L | VG30
View related parts
1985 Nissan 300ZX Automatic Transmission
Part Number: 31020-X8075
Product Specifications
- Manufacturer Note: E4N71B
- Replaced by: 31020-X8084
- Lookup Code: 31020
- Item Weight: 187.00 Pounds
- Item Dimensions: 41.6 x 21.7 x 19.4 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8075
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SF | 6 Cyl 3.0L | VG30
View related parts
1985 Nissan 300ZX Automatic Transmission
Part Number: 31020-X8101
Product Specifications
- Other Name: Transmission-Auto
- Manufacturer Note: E4N71B
- Replaces: 31020-X8062
- Lookup Code: 31020
- Item Weight: 244.80 Pounds
- Item Dimensions: 40.4 x 21.8 x 19.1 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8101
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL | 6 Cyl 3.0L | VG30T
View related parts
1985 Nissan 300ZX Automatic Transmission Assembly
Part Number: 31020-X8100
Product Specifications
- Other Name: Transmission Assembly-Automatic
- Manufacturer Note: 4N71B
- Replaces: 31020-X8020, 31020-X8006
- Lookup Code: 31020
- Item Weight: 187.30 Pounds
- Item Dimensions: 42.0 x 23.3 x 20.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8100
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL | 6 Cyl 3.0L | VG30T
View related parts
1985 Nissan 300ZX Manual Transmission
Part Number: 32010-03P04
Product Specifications
- Other Name: Transmission
- Manufacturer Note: FS5R90A(T-5)
- Replaces: 32010-03P01, 32010-03P03
- Lookup Code: 32010
- Item Weight: 110.20 Pounds
- Item Dimensions: 40.4 x 16.3 x 15.2 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 32010-03P04
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL, SS | 6 Cyl 3.0L | VG30T
View related parts
1985 Nissan 300ZX Automatic Transmission
Part Number: 31020-X8179
Product Specifications
- Other Name: Transmission-Auto; Transmission
- Manufacturer Note: E4N71B
- Lookup Code: 31020
- Item Weight: 178.50 Pounds
- Item Dimensions: 41.6 x 21.3 x 20.0 inches
- Condition: New
- Fitment Type: Direct Replacement
- SKU: 31020-X8179
- Warranty: This genuine part is guaranteed by Nissan's factory warranty.
More Info
Fits the following 1985 Nissan 300ZX Submodels:
- GL, GLL | 6 Cyl 3.0L | VG30T

1985 Nissan 300ZX Transmission Assembly

Committed to delivering top-notch quality at affordable prices, our website is your go-to source for OEM 1985 Nissan 300ZX Transmission Assembly worldwide. Each of our genuine 1985 Nissan 300ZX Transmission Assembly come with a manufacturer's warranty, so rest assured, quality and cost are covered. With us, you're making a smart choice that stands the test of time.

1985 Nissan 300ZX Transmission Assembly Parts Questions & Experts Answers

Q:
How to disconnect and remove the automatic transmission assembly from a 1985 Nissan 300ZX?
Posted by Kateland R.
A:
Disconnect the negative cable at the battery and place it out of the way to prevent accidental contact with the negative terminal. Raise the vehicle and support it securely on jackstands. Drain the transmission fluid and replace the pan to keep dirt from entering the transmission. Remove the driveshaft, starter, and exhaust front tube. On the left side of the transmission, locate and disconnect the three electrical connectors, moving the attached wires out of the way by cutting the tie straps. Trace the two remaining wires to their connectors near the battery and disconnect them, leaving them attached to the transmission. Disconnect the vacuum line from the vacuum modulator and detach the metal line from its hold-down bracket. Disconnect the two cooling lines at the transmission case, noting the number and location of the sealing rings on the retaining bolts, and follow the lines to disconnect their holding brackets before removing them at the radiator, being prepared to catch any leaking fluid. Unscrew the speedometer cable from the transmission and disconnect the ground wire attached to the body next to the speedometer cable connector. Remove the cotter pin on the shift linkage and disconnect the shifter linkage from the transmission linkage. Place a jack under the engine oil pan, using a piece of wood to avoid damage. Remove all but two of the transmission to engine bolts and take out the dust shield located between the two components. Place a suitable transmission jack under the transmission pan and remove the two bolts retaining the starter support plate to the engine block, then take off the plate. Disconnect the torque converter retaining bolts, using a wrench on the crankshaft bolt to turn it for access to each of the four retaining bolts through the starter opening. Remove the four bolts securing the rear transmission mount crossmember to the body, then take out the two remaining transmission retaining bolts and slide the transmission back and down to remove it from the vehicle. Installation is the reverse of removal, ensuring to fill the transmission with the proper amount of fluid and replace the pan gasket with a new one.
Answered by Nissan Parts Specialist Anildo / Apr 13, 2022
